- Transistor Polarity: N Channel
- Continuous Drain Current Id: 12A
- Drain Source Voltage Vds: 1kV
- On Resistance Rds(on): 1.05ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 4.5V
- Power Dissipation Pd: 300W
- Operating Temperature Min: -55°C
- Operating Temperature Max: 150°C

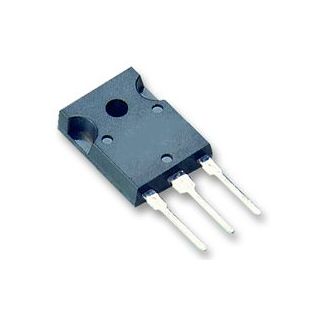

- Transistor Case Style: TO-247
- No. of Pins: 3
- MSL: -
- SVHC: No SVHC (19-Dec-2012)
- Alternate Case Style: SOT-249
- Current Id Max: 12A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- On State Resistance Max: 1.05ohm
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 48A
- Voltage Vds Typ: 1kV
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4.5V
